LoRa M.O.S.T.

LG-310/ LEO-310

LG-310/ LEO-310

LG-310/ LEO-310

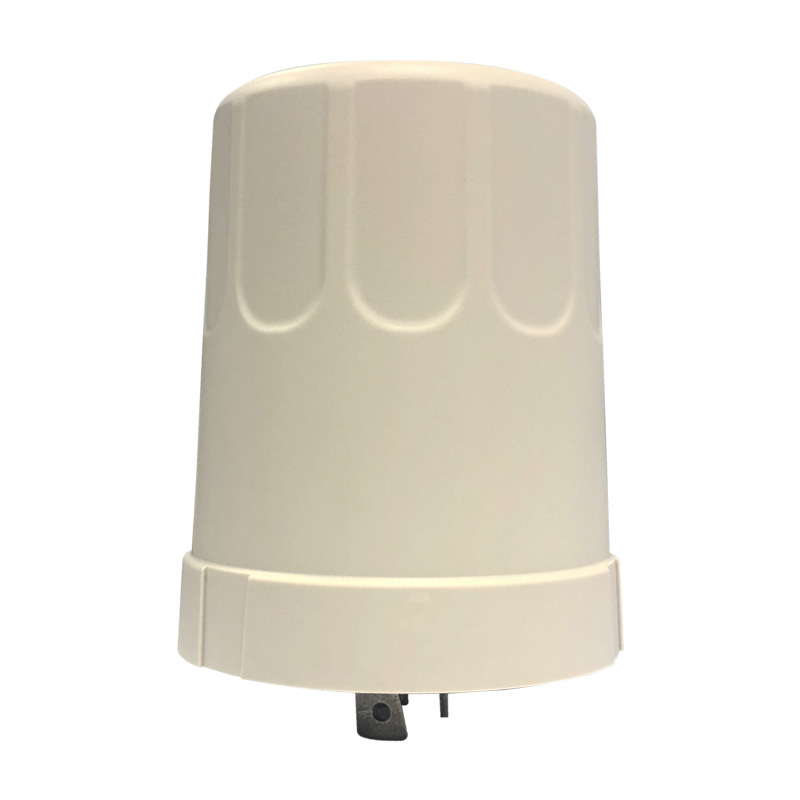

LEO-310

LoRa Smart Lighting Control System

Description

The LEO-310 smart lighting control system is designed to manage street lights in an efficient way.

LEO-310 is a light controller with LoRa wireless technology. It communicates with the backend through a gateway and performs assigned command. Street light information can be reported to the platform for management.

View More Details

Features

Compatible with the ANSI C136-41 NEMA socket
Real-time monitoring of power parameters and fault detection
Light control functions (ON/OFF/Dimming)
Intelligent operation based on predefined schedule
IP66 protection rating

Specifications

Items	LEO-310
Power Supply	AC 110-220V~ @50-60Hz
Communication Technology	LoRa: US915/AS923/EU868MHz
Dimming Output Signal	DC 0~10V / 1mA
Socket Type	NEMA ANSI C136.41
Operating Temperature	-20℃ ~ +60℃
Dimensions	Φ84mm*105mm (not include NEMA Socket)
Weight	245±25g
Protection Rating	IP66
